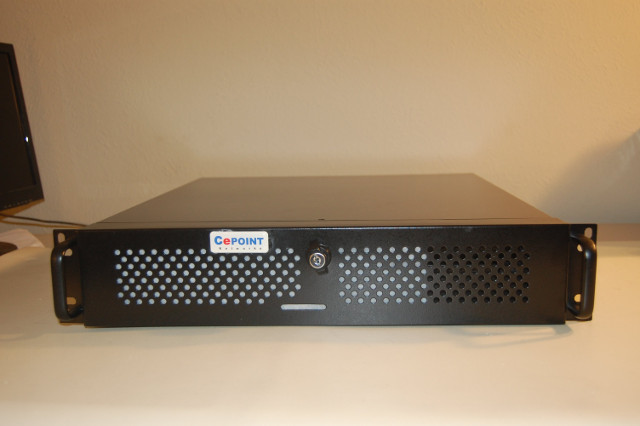

Studio9000 Multi-channel Real-time data/disk Video Recorder and streaming system is the industry's most compact 2U rackmount streaming system with IRIG-B or GPS frame time-stamp capability designed for 4K broadcast video capturing and recording applications that streams 4K IP Video.
Cepoint ST9000DVR-IRIG-sv7 is STANAG and COTS MIL-STD-910 compliant video system.
DALLAS – May 8, 2017 - Cepoint Networks released it's latest real-time disk video/data recording and streaming system built with 3G HD-SDI Multi-channel capture and playback ports, with IRIG-B or GPS frame time-stamp capability. Studio9000-sv7 is designed for High definition Broadcast and Surveillance real-time video capturing, recording and playout applications conforming to SMPTE 342 standard and has capability of simultaneous video/audio capture and recording and 4K video Transport over 10G. Other capabilities includes synchronized capture and recording of high speed data and 4K video with precision IRIG-B or GPS hardware time-stamps of video or image frames.
Sources, with input capture and recording of HDMI, VGA, IP, RGB, (H&V sync or Sync-on-Green)
Also included is an embedded or removable Solid State Disk storage media capable of storing up to 8-hours or more of data or content. The industrial grade unit is designed for high speed imaging and video recording for scientific analysis, and can capture and record simultaneous multiple streams of video or images upto 4K res from any source, HD-SDI, computers, VGA sources, X-Ray machines, NTSC or PAL component or composite, analog or digital video sources in uncompressed AVI or compressed, H.264, MPEG-4, M-JPEG and quite suitable for tracking and analyzing images and videos of fast moving objects; Bullet & Ballistic Testing, high end surveillance such as Airborne video surveillance, X-Ray, FLIR, Machine Vision, Radar imaging,....etc.. Resolution and frame speed can range up to 2048 x 2048 and up to 100,000 fps or more. Since the unit was designed with mobility and laboratory environment in mind, an optional 28V or 48V DC powered version is also available in addition to the standard 110-240V AC powered unit.
4K IP-VIDEO STREAMING
The New Product expands on Company's standard and custom communications solutions. This greatly enhances customer experience and saves time and money through some key features:
- Simultaneous real-time capture and recording of synchronized Multiple 3G/HD-SDI video sources
- Synchronized IRIG-B or GPS precision time-stamp on each video frame
- Synchronized optional audio recording with video
- SMPTE standard 4K IP video Transport Streaming
- Removable Storage Disc modules or RJ-45 Ethernet
Cepoint's Studio9000 video acquisition systems are being used in Broadcasting, R & D laboratories, and defense agencies for complex and advanced imaging applications.
Product is now available direct from the company or approved representatives in North America, or online for an MSRP starting price of $5,000.. Current customers of the standard Product can receive a discounted upgrade. For more information on Product or to view a demonstration on how New Product can increase your productivity visit: http://www.cepoint.com or For information contact : This email address is being protected from spambots. You need JavaScript enabled to view it. Phone: (603)557-7464.
ABOUT COMPANY NAME
Cepoint is a systems integration, consulting, and manufacturing company with emphasis in custom and specialized IT systems and video products and solutions for defense, R & D, security and communications applications. The company also manufactures high performance, industrial strength computing systems, enterprise storage raid, network communication systems, applied computing products, and technologies for scientific applications and industrial processes, as well as RAID, applied computing products, for Telecom, Government, utilities and industrial markets. for mission-critical applications, servers, VoIP ,video surveillance, real-time IRIG-B or GPS time-stamp DVR's, rugged portables, NEB's compliant computers.
The company is committed to the interests of your audience with products available through major authorized representatives in North America, Australia, Europe, the United Kingdom and Japan as well as on the Internet. For additional information please visit our website at http://www.cepoint.com
PRESS CONTACT
Marketing Manager
Cepoint Networks, LLC
Phone: +1 (603)557-7464 /Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
PRESS RELEASE
48TB in 1U rack enclosure
Cepoint Networks unveils Energy saving servers running with 110V DC or 48V DC powered
battery grid for IT and Telecom data centers
How much energy can your infrastructure save using a farm of 40TB 1U rackmount NAS servers?
Energy Saving Network Attached Storage (NAS) and energy efficient data storage servers is yet another way to cut down on power consumption and environmental pollution with clean renewable energy. Cepoint Networks is leading the way with its new unveiled energy efficient NAS systems.
Introduced for a variety of industrial and commercial applications, including IT and Telecoms data centers, infrastructure managers and system engineers dreaming of low power, low cost energy saving systems, Cepoint Networks, 40TB NAS server running on DC or AC powered grids is talk of the industry as many companies are starting to shift to small compact but power computing appliances for their private or public hybrid cloud.
Cepoint a company specialized in multi-faceted IT industrial systems and communications has started putting more emphases on building their data storage and standard server systems with low cost, low energy utilization systems powered on 110V DC or 48V DC. battery grid. It is no surprising companies like Google and Amazon are beginning to go Green at their data centers globally. “...This is the future trend and way to go if IT and Telecoms industry is will sustain the continual demand for more power every four to five years..” said Benny Adama, Senior IT Consultant at Cepoint Networks.
Deployment of Cepoint's systems are particularly very economical and cost saving especially where electrical grids are non-existent, unstable or very limited. RM-1700 servers are re-usable battery powered low profile entry level and mid-range Enterprise data center solutions ideal for clustering, virtualization and scale-out NAS cloud computing,
RM-1700 series 48V /110DC powered 4/8/12-bay 1U enclosure single storage solution for 24 x 7 NAS data storage and optimized for use in low power grid data centers or unstable power electrical environment.
Enterprise Entry-Level and Cloud SDS Storage solution with power efficiency
The TELCO carrier grade, NEB’s compliant platform RM-1700 storage system scales -Out to unlimited capacity and expands beyond initial configuration without taking down the system. A fully configured unit is easily scalable without any hassle of down time or delayed deployment. This system is very suitable for other Real-Time mission-critical applications in Telecommunications environment and security, such as large scale VoIP, Telephony and campus wide data warehouse.
Multiple RAID 5 Capable. Scale-out NAS
The efficient power saving systems supports RAID levels 0, 1, 3,10, 5, 5EE, 6, 50, 60, and with all its equipped features, RM-1700 are deployable as a NAS, iSCSI SAN or Fibre-channel SAN or stripped down JBOD or DAS (Direct Attached Storage) depending on required application needs and environment, thus making R1700 is a configurable or re-configurable Unified Enterprise storage server computing solution, saves enterprises and their IT departments thousands of dollars, deployment and maintenance or management headaches that otherwise would have been incurred or encountered in tinkering or trying to adapter different or varied solutions from multiple vendors.
About Cepoint Networks, LLC.
Cepoint Networks, LLC is a systems integration, and high performance computing manufacturer, specializing in high availability storage, applied computing products, and services for enterprise applications, telephony and telecommunications industry, Government, utilities and industrial markets. The Company's other products and services include; turnkey rack mount fault-tolerant cluster servers for mission-critical applications, servers, video-on-demand, telephony systems for VoIP (Voice-over IP), video/audio conferencing, real-time IRIG-B or GPS time-stamp digital recorders, voice logging and telecasting and, rugged portable lunch box workstations for field applications, network engineers and technicians. 1U, 2U, 3U and 4U NEMA and NEB's compliant servers and workstations for data acquisition, audio and video data archives or real-time video/data streaming. Company's website ishttp://www.cepoint.com
For more information contact: This email address is being protected from spambots. You need JavaScript enabled to view it.This email address is being protected from spambots. You need JavaScript enabled to view it."> or Ph: (603)557-7464 Website: and http://www.cepoint.com or Contact: Marketing Manager This email address is being protected from spambots. You need JavaScript enabled to view it. Cepoint Networks, LLC Ph:(603)557-7464
Better voice recordng and logging---with a complete range of passively or actively tapping categories, Cepoint products are compatible with all diverse interfaces, such as IP, T1, E1, Analog, PCM, Radar wireless etc. Also, the rugged 19” rackmount compact size makes it easily installed into compact server center.
Cepoint DmVOR-32/64/128
DIGITAL MULTICHANNEL VOICE RECORDER AND LOGGER w/Optional IRIG-B Time Stamp
Digital Call Recording
Analog Recording
- 19” Rackmount form factor
- Up to 128 channels can be configured
- High-impedance passive monitoring
- RAID 0, 1(mirror), 10 capable
- 7” front panel LCD display w/touch screen
- Removable data storage module
The DmVOR is specially designed for worldwide analog and digital interfaces for its high compatibility with international telephony environments.
The well established DmVOR series supports all analog and digital interfaces, and can easily be configured to connect with diverse analog and digital networks worldwide. With passive and trunking interface capacities, it features programmable voltage thresholds, loop polarity reversal and multiple event triggers. The DmVOR series provides a range of options, including Analog, Digital, IP selectable interfaces and huge versatility. Used by the leading call recording solution providers since 1996, the DmVOR series has been optimized to fit the toughest demands and hyper competitive environments with its matchless cost advantage and outstanding robustness.
Specifically, with on-board advanced DSP algorithm and DMA processing capability, the DmVORseries helps minimize the consumption of host CPU resource and outperforms all comparable products in the toughest application scenarios, including better performance and higher scalability up to 256-channels simultaneous call logging. As a modular structure, the DmVORseries can be customized to provide 256, 128, 32, 16, 8 channels (per system) ideal for small offices to large call centers. Many developers worldwide have depended on the DmVORseries to create robust and high capacity systems in central office and Telco environments.
The DmVORseries leverages multiple dedicated DSP chipsets (not host processor resource), to process a range of high-ratio compressions, including license-free G.729 and GSM. This robust architecture releases host processors from overloading and assures efficient data storage and high reliability for data transmission in the most difficult situations.
Adapt to environments where Tip and Ring are reversed. Minimum 10k Ohm AC Impedance/2M Ohm DC Impedance With no conversation interruption, high impedance receivers record both sides of a call.
Support Direct Windows WAV Format
Data is stored in WINDOWS WAV format directly, and can be played out by the sound card with no format conversion.
On-Board Audio Jack and Microphone Connector
Monitor all channels in real-time or playback audio files by on-board audio jack resources.
High-Impedance Analog Line Tap
Cepoint designs all kinds of analog and digital voice recorders (up to 256 ports) ideal for any analog or digital environment, widely used small-to- large scaled systems, call recording systems, call center monitoring, and microphone recording, etc.
In-house Unified API (SHCTI)
A single protocol-independent API, which minimizes the processing overhead on the system CPU by executing protocols only on DSP and unifies application development across all Cepoint’s product series, including USB series products.
Tap Environment
With 8 to 256 channel concurrent capacity, the DmVOR adapts to low or high density applications. The unified API supports a total of 256 ports per system. In any analog environment, DmVOR can work well as tapping point between office and PBX, office and phones, PBX and phones and any other analog or dital audio signals.
Worldwide Analog and digital Support
DmVOR supports passive call recording on groundstart and loopstart analog networks. Features such as programmable voltage thresholds, voltage detection, ring detection and polarity reversal are managed through unified API, so the products can easily adapt or be quickly customized to variations in analog or digital systems worldwide.
Security for User Software
The built-in authorized code identification circuit is included to provide an exclusive authorization code for protecting users’ software security.
Typical applications for Radio over IP recording
- Aviation, on-field operations
- Utilities – electricity, gas, water
- Manufacturing – plant operations
- Public safety – police, fire
- Telco-grade Redundancy
- Enhanced Voice Optimization
- 1/2/4 trunks (T1/E1/J1) per slot
- Advanced data processing DMA technology
- Compatible with various telephony /voice /PBX s interface
E1 Physical Ports: compliant with G703, including 75Ω unbalanced interface and 120Ω balanced interface
T1 Physical Ports:DSX-1 and CSU line build-outs available for different extents of signal losses, including 100Ω and 110Ω balanced interfaces
Audio Specifications
CODEC: CCITT A/µ-Law 64kbps
IMA ADPCM: 32kbps
G.729A: 8kbps
GSM: 13.6kbps
MP3: 8/16kbps
Frequency Response: 300-3400Hz (±3dB)
Automatic Gain Control (AGC): -20dB-0dB
Signaling
SS1: compliant with international GF002-9002 (DL and MFC)
SS7: compliant with Q771-Q795
DSS1: compliant with Q.933
Maximum System Capacity
Up to 128 channels concurrently per system each can be monitored (up to 4 E1/T1 trunks).
ORDERING INFORMATION:
DVOR-A/16 -16 channels analog ports
DVOR-E/16 -16 channels digital E1/T1
DVOR-A/32 -32 analog channels
DVOR-E/32 -32 channels digital E1/T1
DVOR-A/64 -64 analog channels
DVOR-E/64 -64 channels digital E1/T1
DVOR-A/128 -128 analog channels
DVOR-E/128 -128 channels digital E1/T1
When ordering or requesting for quote, please use the following example format:
DVOR-A/XX-XX (For example DVOR-A/64-08 where A-Analog version, the first XX-no of channesl, second XX – storage capacity, in this example 8TB
Example-2:
DVOR-E/XX-XX (For example DVOR-E/32-16 where E-Digital E1/T1 version, the first XX-no of channesl, second XX – storage capacity, in this example 16TB
Example-3:
DVOR-AE/XX-XX (For example DVOR-AE/32-16 where AE- combination of Analog plus Digital E1/T1 configuration, the first XX-no of channesl, second XX – storage capacity, in this example 16TB
-
Technical Features Name / Description of Equipment Rugged industrial grade professional Digital Multi Channel Voice Recorder. Brand and Model Cepoint DmVOR series Country of Origin USA Country of Manufacture USA Hardware Base Industrial grade COTS Motherboard or System Host Board. “Intel Core 2 Quad” CPU. 19" wide rack Mountable Chassis with optional LCD touch screen display Frequency Response 200 Hz to 3400 Hz or wider. Channel Capacity 8/16/32/64/128 Channels Fault Alarm Provision of automatic fault alarm with fault detection. Hard Disk Capacity 4 TB (Terabyte) or more Data Storage Provision of required recording DVD-RW/CD-RW for minimum 03 month data storage. Servicing Kit Provision of servicing kit with extension cord, microphone, monitoring headset and any other item required for satisfactory operation of the system. Security System specific keycode secured from unauthorized access. And administrative password . Local system control Control via LCD touch screen on front panel and control via optional key board, display and mouse. Front Panel Audio Control Volume control, headset jack, line out (re-record) jack Audio characteristics Frequency response: 200 Hz to 3400 Hz Playback and monitoring Simultaneous record & playback capability. Provision of live monitoring of individual channel or multiple channels. Search Parameters Search/find out channel name, channel number, time, date, duration, call duration, location etc. Time synchronization Network Time Protocol (NTP). RS-232.
Optional IRIG-B or GPS time synch.Digital PBX Telephone Interface Passive recording for a wide range of Digital PBX Telephones by Alcatel, Avaya, Mitel, NEC, Nortel, Toshiba, Siemens and more. IP VOIP VoiceOIP, ROIP (RadioOver IP) T1/E1/ISDN Interfaces High Impedance Passive Recording Options (T1, ISDN-PRI, E1, ISDN30, INDN2 trunks). Terminating card options for T1, E1. Air Traffic Control Interfaces Analog 2-wire, analog-4 wire, VOIP recording interface. T1/E1 from VCS, replay synchronization options. Power Supply Dual hot-swap, 220-230 VAC 50/60 Hz Backup Software for the Multi Channel Voice Recorder is to be provided with the items. Any other facility / provision required for operation of the equipment is to be provided by the supplier.
Ordering Contact Information
Contact us for details and custom quote
This email address is being protected from spambots. You need JavaScript enabled to view it. Phone: 1(603)557-7464. website: http://www.cepoint.com
All rights reserved. ©2016 Cepoint Networks, LLC. Specifications
subject to change without notice. Cepoint products or products from
third part vendors are not manufactured for life support purposes, nor are the products meant or implied for such use.
Cepoint Networks, LLC or its representatives shall not be held liable for any loss or damage to life or business
resulting from the use, misuse or abuse of its products or third part vendor products.
Warranty for Cepoint products is 1-year parts and labor, except as may be indicated in a separate quotation
or proposal. Please allow 30-days delivery time frame.
IRIG-B / GPS embedded VIDEO ENCODER /DECODERS
FLIGHT SIMULATION AND TRAINING VIDEO RECORDER
Cepoint's Studio9000-IRIG B, DVR HDMI,VGA/DVI. HD-SDI Multiple Channel DVR now incorporates IP-remote monitoring and IP-video streaming with IRIG-B or GPS Frame-Time Stamp, and scales to 128 channels. http://www.cepoint.com/Video/Studio9000DVR%20IRIG-B.htm
Cepoint Networks, LLC upgraded its Studio9000-IRIG, DVI/VGA RGB(HDTV) and HD-SDI Multi-channel Digital Video Recorder system with IP-Video streaming and IRIG-B or GPS frame time-stamp capability. The system is designed for flight simulation, training, monitoring, High precision and high definition Radar Broadcast and Surveillance video capturing and recording applications conforms to SMPTE 424M standard and now has capability of simultaneous audio capture and recording up to 128 1920 x1080p or 4K sources with precision IRIG-B and GPS data and time code synchronization and stamp.
Studio9000DVR-IRIG ships with optional embedded with IRIG-B (Inter-range Instrument time code) or GPS time code generator and receiver for precision IRIG-A/B or GPS frame time-stamp and referencing.
Also included is an embedded or removable Solid State Disk storage disk capable of storing up to 8-hours or more of data or content.
The industrial grade unit comes in 2U or 4U 19” rack-mount designed for high speed imaging and video recording for scientific analysis can capture and record simultaneous multiple streams of video or images from any RGB, computer VGA sources, X-Ray machines, NTSC or PAL component, analog or digital video sources in uncompressed AVI or compressed MPEG-4, H.264, M-JPEG, and quite suitable for tracking and analyzing images and videos of fast moving objects, Bullet & Ballistic Testing, high end surveillance such as Airborne video surveillance, X-Ray, FLIR, Machine Vision, Radar imaging, etc. Resolution and frame speed can range up to 2048 x 2048 and up to 100,000 fps or more. Remote monitoring, control and management of the unit via Ethernet or PI-Network adds more robust functionality and easy use or operation of the system.
Since the unit was designed with mobility and laboratory environment in mind, an optional 28V DC powered version is also available in addition to the standard 110-240V AC powered unit.
The Product expands on Company's standard way of doing things by doing things better, faster and smarter. This greatly enhances customer experience and saves time and money through some key features such as:
- Simultaneous real-time capture and recording of synchronized Multiple HD-SDI video sources
- Synchronized IRIG-B or GPS precision time-stamp on each video frame
- Synchronized optional audio recording with video
- SMPTE 424M standard, 3G-SDI link
-Multiple recording and streaming of 1920 x 1080p @60 fps
-Capture from unlimited video sources.
- Removable Storage Disc module or RJ-45 Ethernet
Cepoint's Studio9000DVR video acquisition systems are being used in Scientific R & D labs, Broadcasting, Industrial R & D laboratories, and defense agencies for complex and advanced imaging applications.
Product is now available direct from the company or approved representatives in North America.
For information contact : This email address is being protected from spambots. You need JavaScript enabled to view it. Phone: (603)557-7464 or go to Website: www.cepoint.com
About Company
Cepoint Networks is a systems integration, consulting, and manufacturing company with emphasis in custom and specialized IT products and solutions for Aerospace, aviation, defense, R & D, security and communications applications. The company also manufactures high performance, industrial strength computing systems, enterprise cloud storage appliances, network communication systems, applied computing products, and technologies for scientific applications and industrial processes.
Cepoint is committed to the interests of aerospace, aviation and industrial video audience with products available through some authorized representatives in North America, Australia, Europe, the United Kingdom and Japan, as well as on the Internet. For additional information please visit our website at: www.cepoint.com
Press Contact
Marketing Manager
Cepoint Networks, LLC
Phone: +1 (603)557-7464
Email Address: This email address is being protected from spambots. You need JavaScript enabled to view it.
